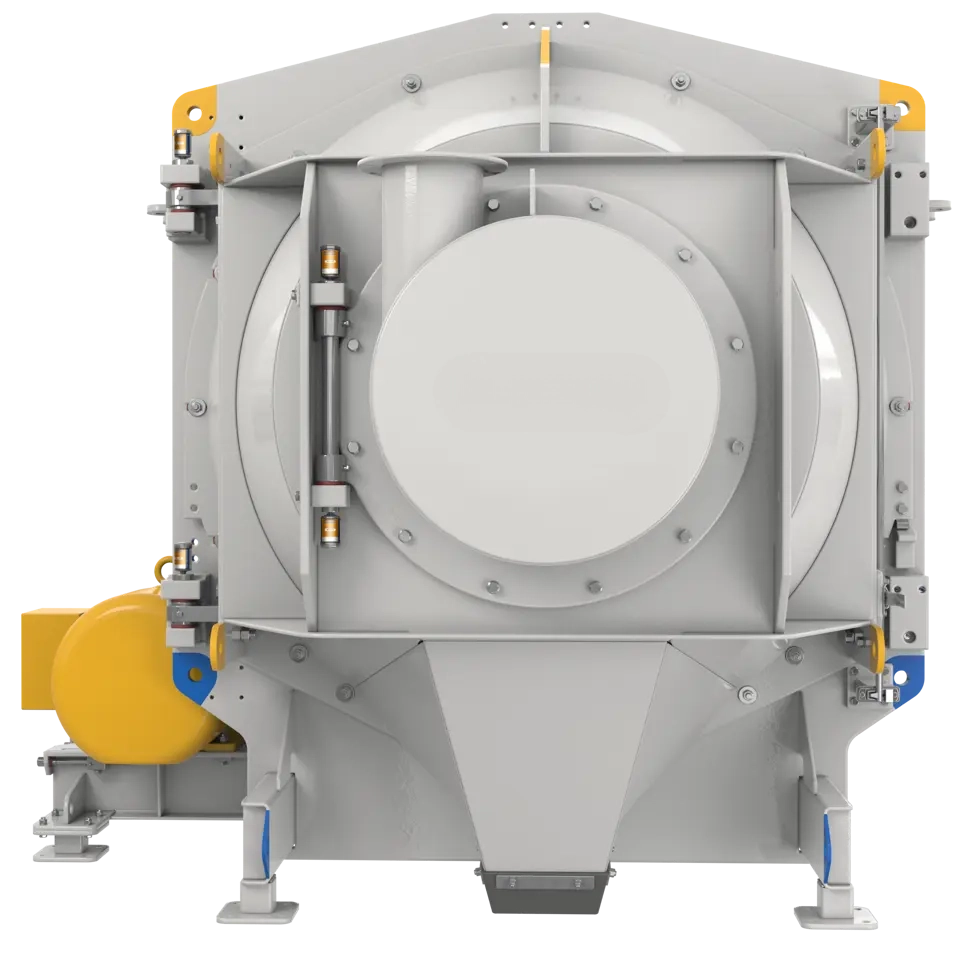

FCN Series Horizontal Fine Coal Centrifuge

FCN Series horizontal fine coal centrifuges are designed to deliver high-capacity dewatering performance in demanding fine coal applications. Based on advanced design principles like optimal G-force and basket angle, these machines ensure excellent moisture reduction, long wear life, and efficient handling of dilute feed streams.

The FCN Series represents a significant upgrade over legacy designs, combining high throughput with minimal operating costs. Its retrofittable footprint and maintenance-friendly layout — including simplified scroll adjustment and in-situ drive module replacement — make it ideal for both new and replacement installations. Wear components are engineered for extended service life, and the inlet system aids in pre-separation of solids and water to improve performance and reduce basket wear.

Key features:

– Product moisture of 9–13% with feed up to 55%

– Retrofit-compatible with HFC1300 footprint

– 110kW power requirement

– Optimised basket speed and angle for maximum efficiency

– Easy scroll adjustment to minimise downtime

– Improved wet-end access and in-situ drive module replacement

– Designed for dilute feed handling

– Durable wear components and efficient solid-liquid separation

Specifications

Installed Power: 110 kW

Weight: 13,000 kg

Feed Size: -6 mm

Basket Speed: 338 RPM

Capacity: 100 TPH

Feed Moisture: 50–55%

Product Moisture: 9–13%
