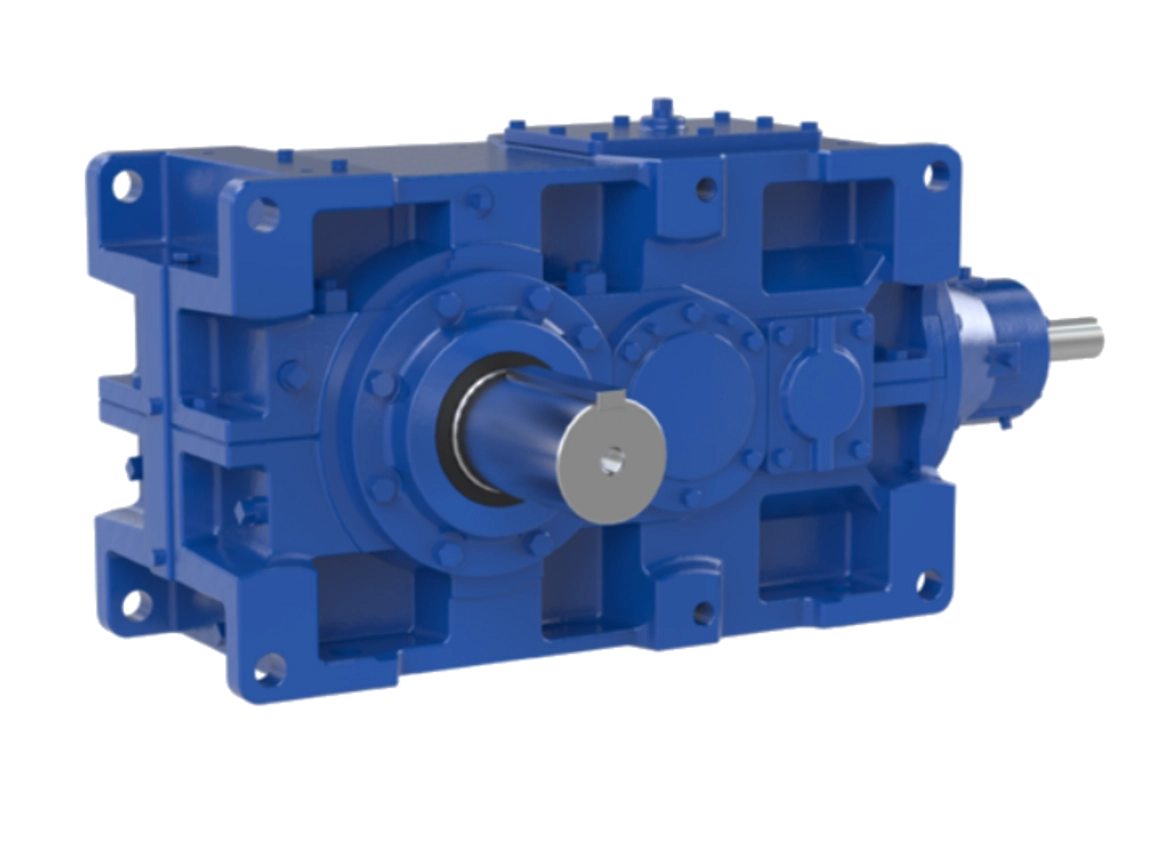

HXD Series Gearboxes

The HXD Series gearboxes are designed for small and medium torque applications, offering a versatile solution for material handling, cranes, and mixing equipment. Available in parallel and right-angle configurations with 2, 3, or 4-stage reduction, they feature solid or hollow low-speed output shafts and high flexibility in mounting and accessories. The compact monobloc housing (up to 20 kNm) and robust split housing design (above 20 kNm) ensure durability and reliability across a wide range of applications.

Engineered for fast local delivery in 8 standard sizes and supported by global production for 26 sizes in total, the HXD Series is ideal for horizontal shaft installations, with vertical output options available on request. Additional accessories include condition monitoring, cooling fans, brakes, and backstops.

Technical Specifications

Number of Sizes, locally produced — 8 (size 9050 to 9085)

Number of Sizes, in total — 26 (size 9015 to 9136)

Nominal Output Torque — from 2.6 to 552 kNm

Housing Type — Monobloc housing (<20 kNm), Split housing (>20 kNm)

Stages — 2, 3 or 4 stage

Reduction Ratios — Parallel shaft 6.3:1 to 500:1, Right angle shaft 6.3:1 to 450:1

Shaft Type — Solid or hollow low speed shaft

Output Shaft Direction(s) — Horizontal (vertical upon request)
