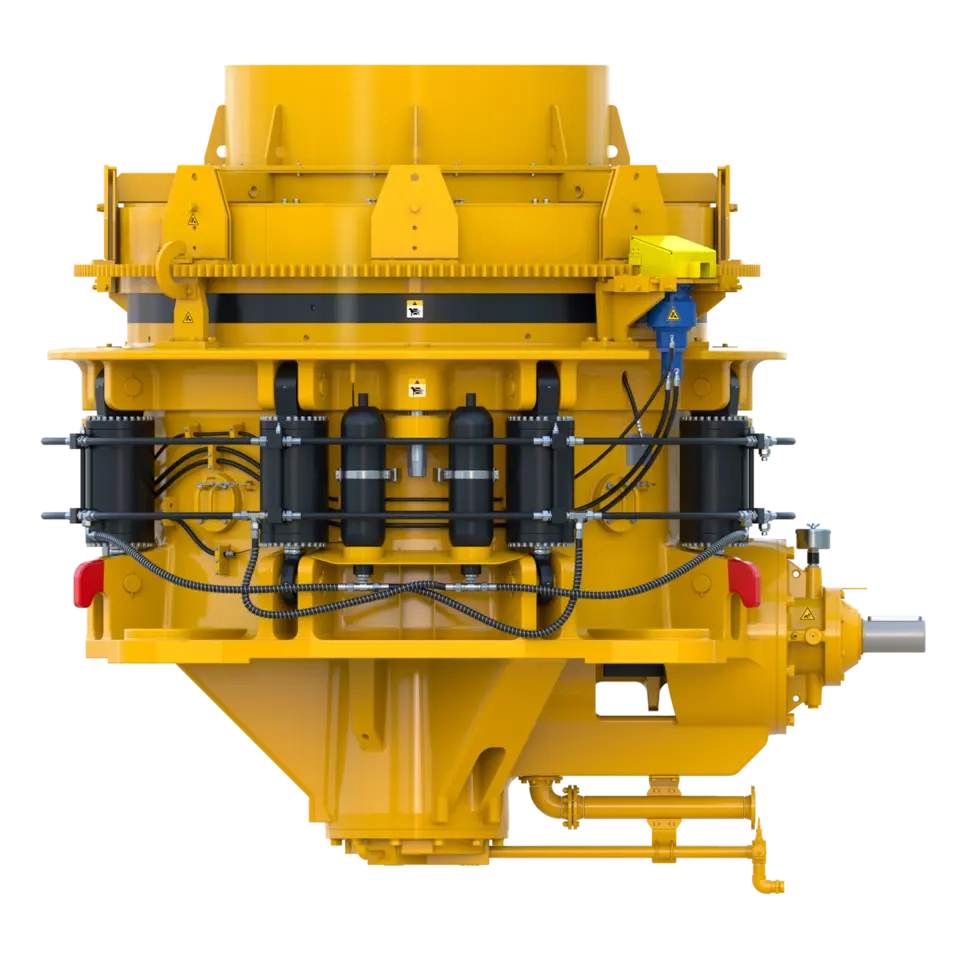

RC Series Cone Crusher

The RC Series Cone Crusher cone crusher continues the legacy of the live-shaft design — proven for reliability and performance in heavy-duty secondary and tertiary crushing. Ideal for processing primary crushed ores and hard rock, it’s the first choice for pebble crushing in mill circuits worldwide.

This crusher uses a synchronized movement of shaft and head to apply consistent crushing force, ensuring multiple compressive actions as material passes through the chamber. With its heavier design compared to fixed-shaft crushers (for the same installed power), the RC Series delivers superior crushing capacity in demanding applications.

It combines time-tested mechanics with modern hydraulic systems and control features, providing precise bowl adjustment, tramp release, and integration flexibility for remote operation.

The RC Series cone crusher is known for:

High-strength alloy steel castings and a welded mainframe

Hydraulic bowl adjustment with integrated control

Large crusher head for improved throughput

Remote operation readiness and automation support

Advanced tramp-release for operator safety

Available up to 450 kW (600 HP) drive power

MATERIALS

Alloy steel, leaded bronze, and cast steel

LINER OPTIONS

18%, 13%, or 21% manganese steel wear liners

Ultraperformance and custom liners available

WEIGHT

12,000kg – 78,000kg

CSS RANGE

6mm* – 64mm (*consult Weir for operation at minimum setting)

HEAD DIAMETER

Models from 36” to 84”

POWER REQUIREMENTS

90kW / 125 HP – 450kW / 600 HP
