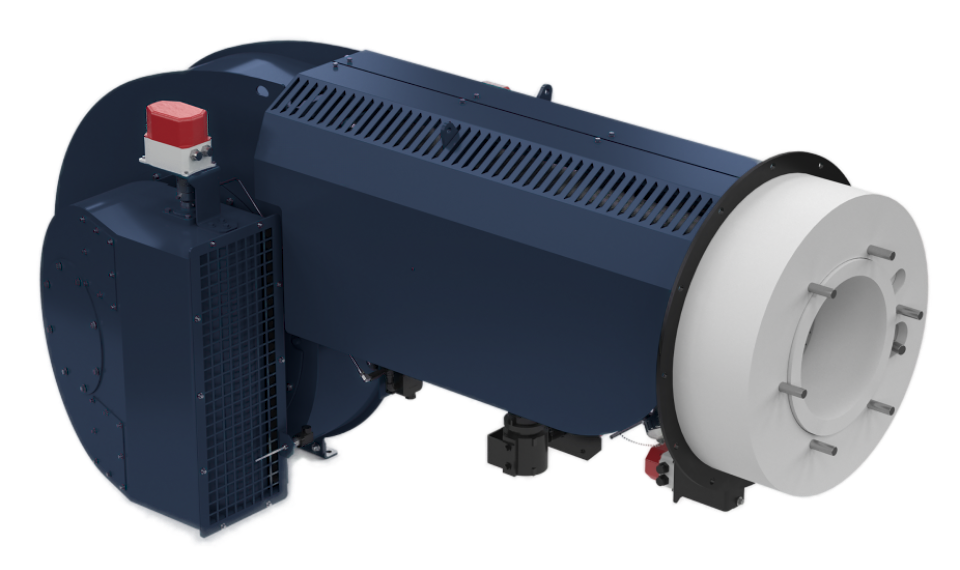

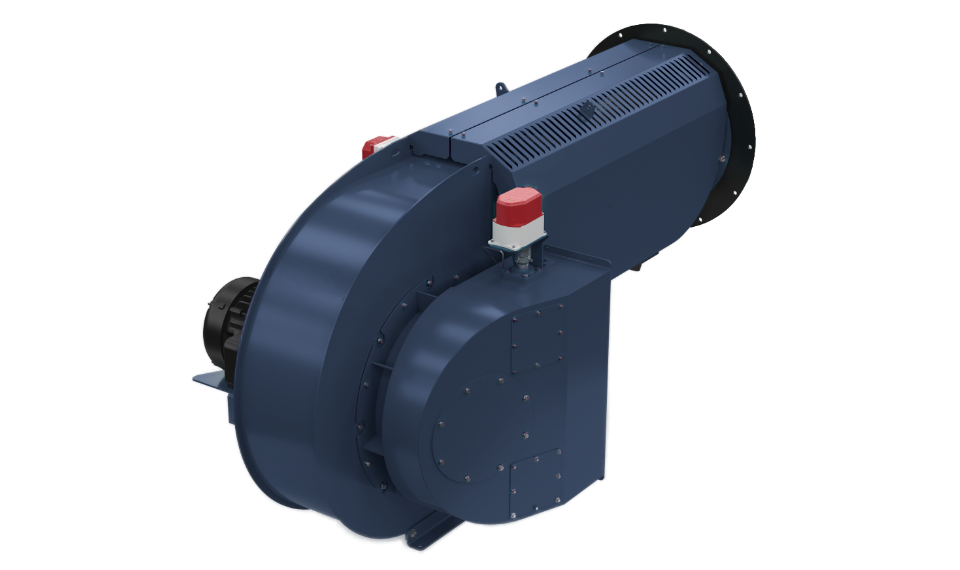

SBR Series – Ultra-Low NOₓ Surface Burner

SBR Series burners are advanced, surface-stabilized premix burners designed for ultra-low NOₓ performance in firetube and watertube boilers. Operating on natural gas only, they achieve emissions <5 ppm NOₓ, without FGR or SCR, making them ideal for facilities subject to stringent air quality regulations. The burner uses a metal fiber mesh combustion surface, providing uniform flame, low noise, and stable operation across its 3:1 turndown range. SBR burners are fully modulating, with integrated controls and compact design suitable for new installations or retrofits. Factory-tested and field-proven, they deliver reliable, high-efficiency combustion with minimal environmental impact.

Specifications:

Fuel: Natural gas

NOₓ emissions: <5 ppm (corrected to 3% O₂)

Input range: 4.2 to 29.4 MMBtu/h

Turndown: 3:1

Control: Fully modulating, integrated

Design: Surface-stabilized metal fiber burner

Applications: Firetube and watertube boilers

Certifications: UL/cUL listed

Noise: Ultra-low

Mounting: Compact, front-access
