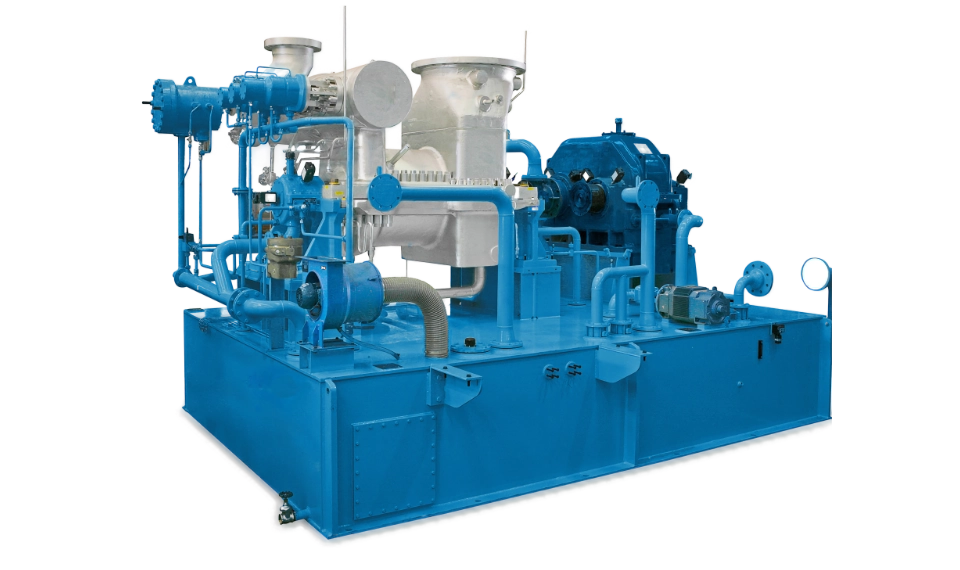

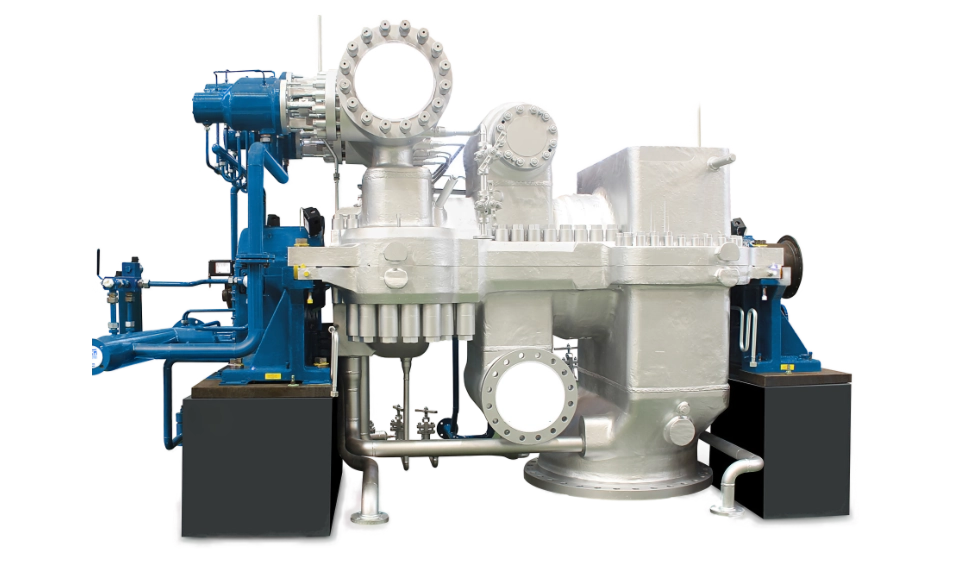

TBI Series – Backpressure – Multi-Stage

The TBI Series is a versatile range of impulse backpressure steam turbines, engineered for industrial steam networks, cogeneration, and process heat applications. These turbines feature a modular axial flow layout, allowing customization for varying power needs and site conditions.

Designed for reliable operation under fluctuating loads, the TBI turbines are built with robust bearing systems, efficient nozzle groups, and compact footprints. Their simplified maintenance access and high thermal efficiencymake them ideal for industries such as pulp and paper, food processing, and biomass power.

• Power Output: 1.5 MW to 15 MW

• Steam Inlet Pressure: up to 60 bar

• Steam Temperature: up to 500 °C

• Speed Range: 3,000 to 9,000 rpm

• Casing: Horizontally split with axial or radial steam admission

• Applications: Process steam supply, industrial co-generation, energy recovery
