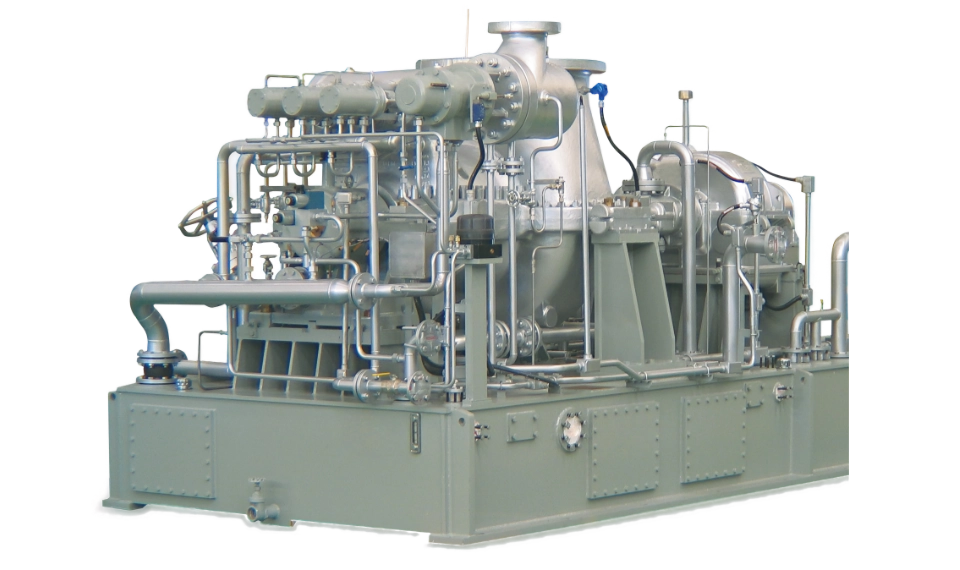

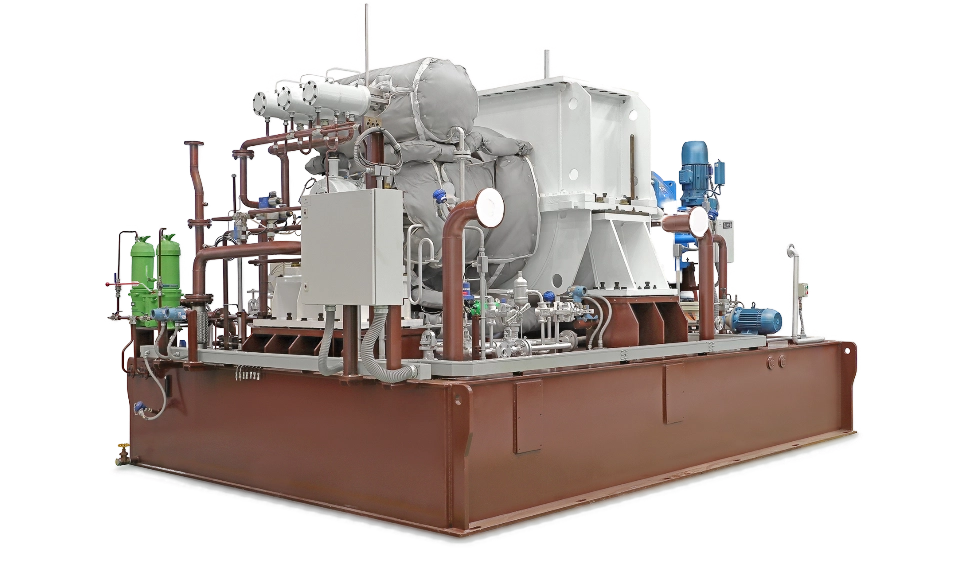

TIC Series – Impulse Condensing Steam Turbines

The TIC Series offers robust impulse-type steam turbines engineered for high-performance condensing applications. These machines utilize impulse blading technology, allowing for compact turbine length, reduced steam consumption, and greater operational stability at varying loads. Designed for industrial-scale power generation, TIC turbines support both centralized and decentralized thermal systems. The horizontally split casing and modular construction simplify maintenance and enable flexible configuration across multiple plant layouts.

Key Specifications:

• Power output: 5 MW to 60 MW

• Steam pressure: up to 100 bar

• Steam temperature: up to 540°C

• Speed range: 3,000 – 12,000 rpm

• Blade type: multi-stage impulse

• Inlet configuration: axial or radial

• Efficiency: high at full and part load

• Applications: industrial power plants, cogeneration, IPP
