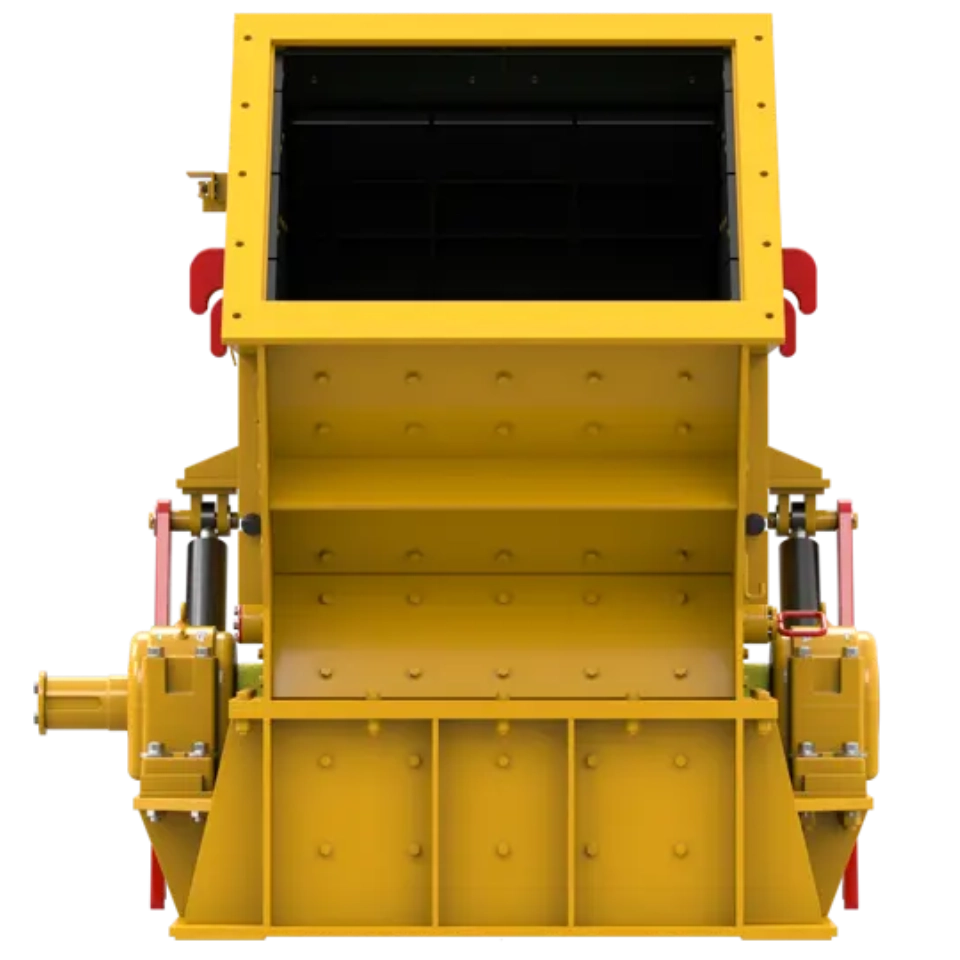

AS Series Impact Crusher

The AS Series Horizontal Shaft Impact Crusher is designed for high-capacity secondary crushing, delivering large reduction ratios without compromising product quality or shape. It also performs well in recycling applications, particularly with low-abrasion and low-work-index materials.

Ideal for concrete, asphalt, and slabby feed, the AS Series features:

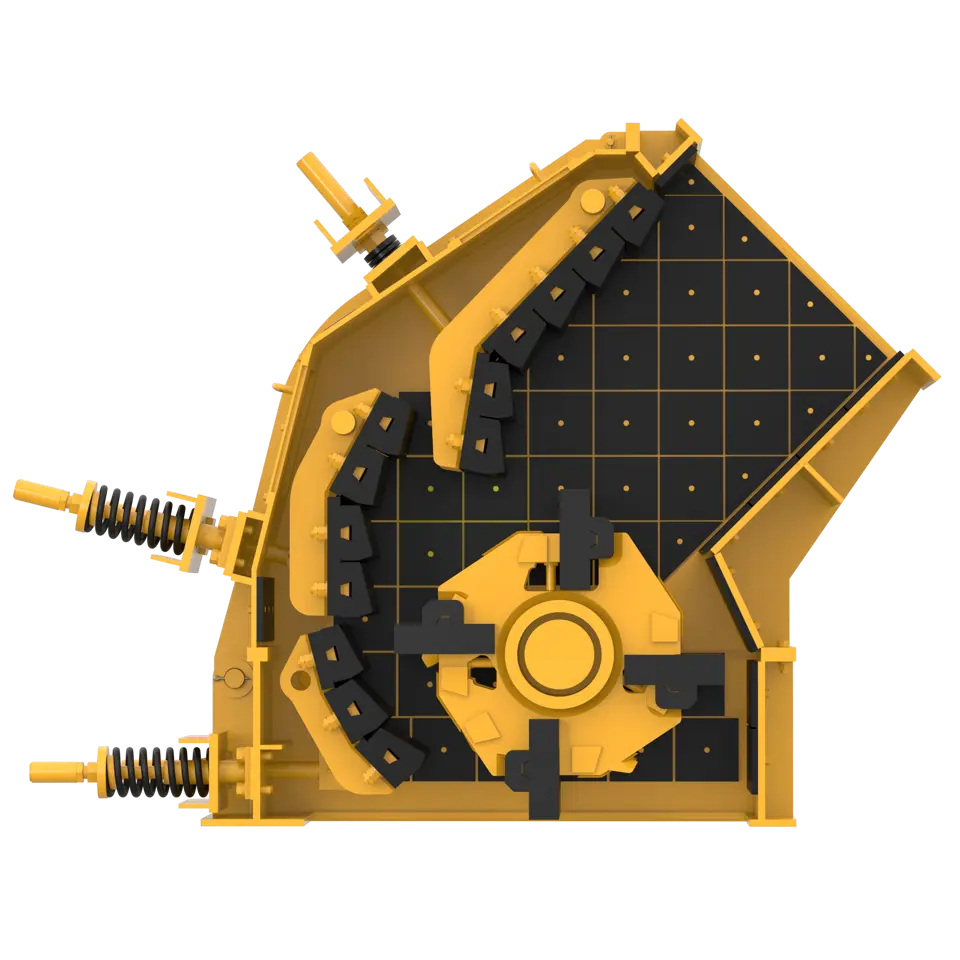

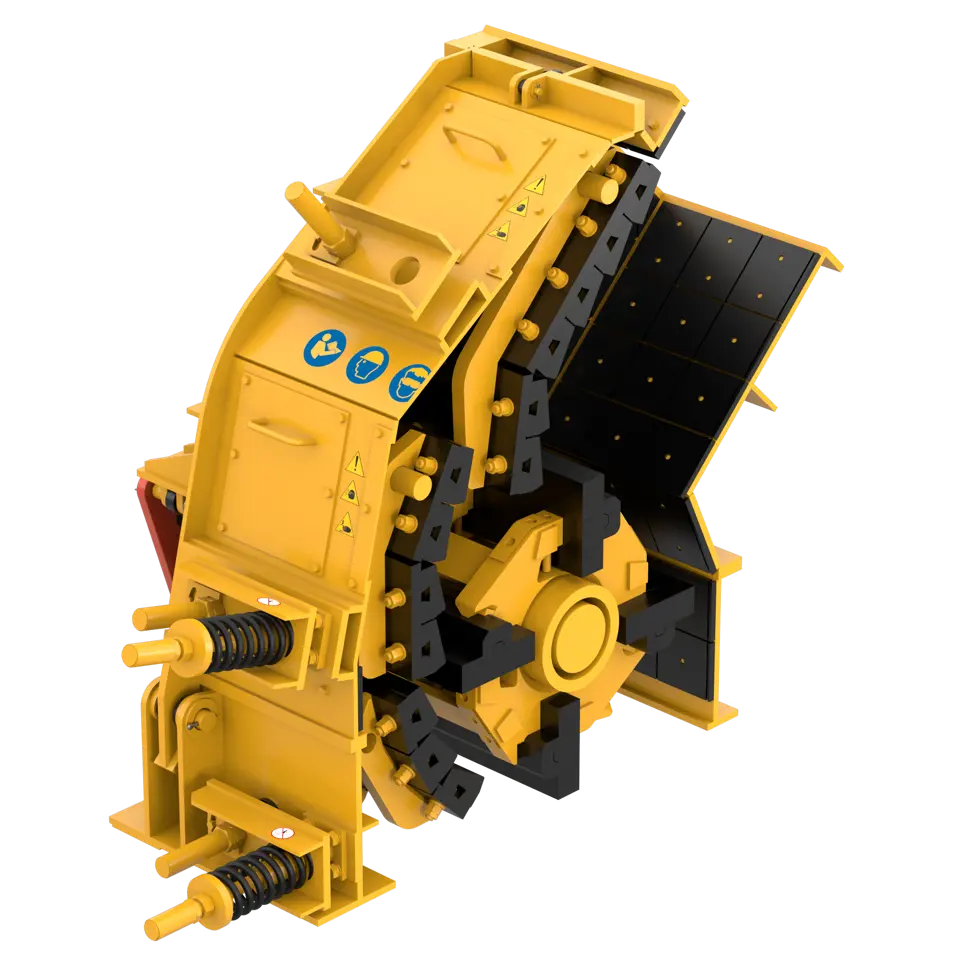

• Steel coil springs for curtain support

• Shim stacks with hydraulic assist for easy gap adjustment

• Hydraulic frame opening for quick internal access

• External stripper bar adjustment

• Optional third curtain for finer control

Compared to other impact crushers, the AS Series achieves superior particle shape in a single pass.

Design: Horizontal Shaft Impactor

Materials: Welded and forged steel, stress-relieved fabricated frame

Weight: 4,600 – 21,000 kg (4 models)

Rotor Size: 762 × 762 mm to 1295 × 1524 mm

Max Feed Size: 200 – 600 mm

Production Capacity: 18–54 mtph to 180–360 mtph

Installed Power: 55 kW (75 HP) to 315 kW (450 HP)
