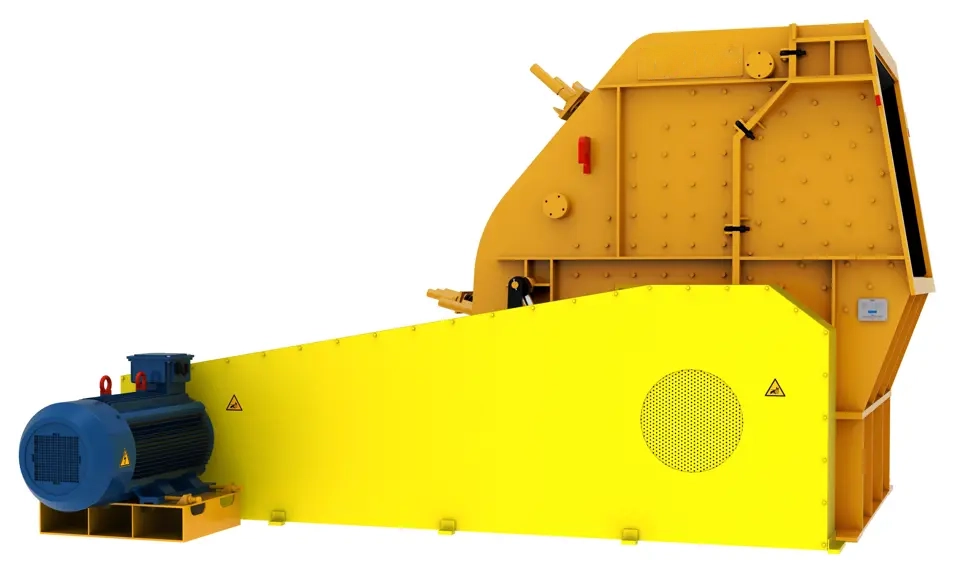

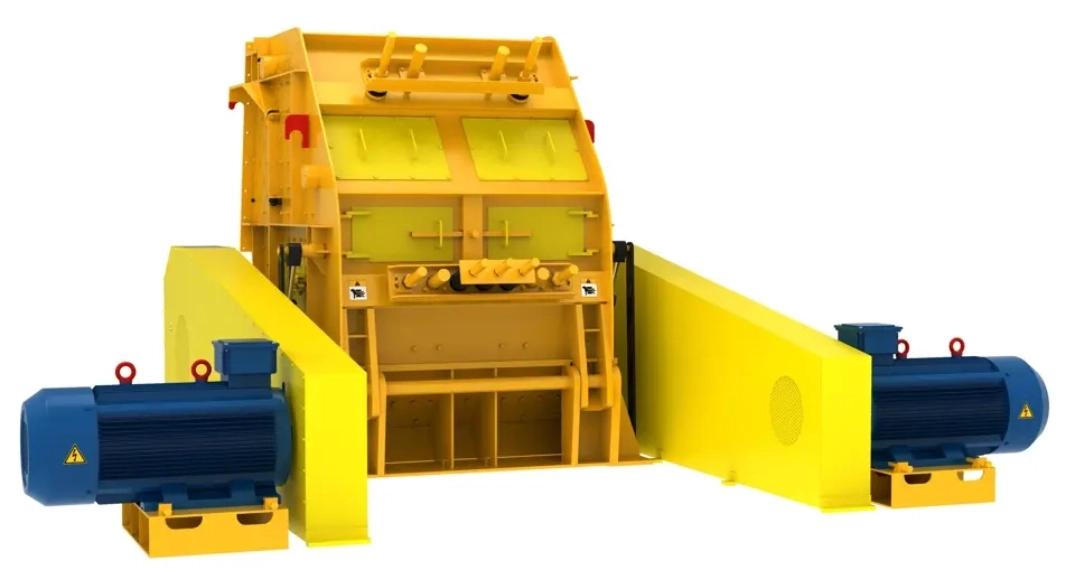

AR Series Impact Crusher

The AR Series Horizontal Shaft Impact Crusher is engineered for high throughput and large reduction ratio, making it ideal for primary crushing across a broad range of conditions. Compared to jaw and cone crushers, it provides superior reduction and a larger feed opening.

Designed for reliability and easy maintenance, it features:

• Welded carbon steel frame

• Heavy-duty steel coil springs

• Abrasion-resistant blow bars

• Welded steel rotor

• Hydraulic crusher opening for safe access

Materials: Welded steel, stress-relieved fabricated steel, forged steel

Design: Horizontal Shaft Impactor

Installed Power: 200 kW (300 HP)

Weight: 17,500 kg

Feed Size: Up to 600 mm

Inlet Opening: 1000 × 1400 mm

Production Capacity: 180–320 mtph
