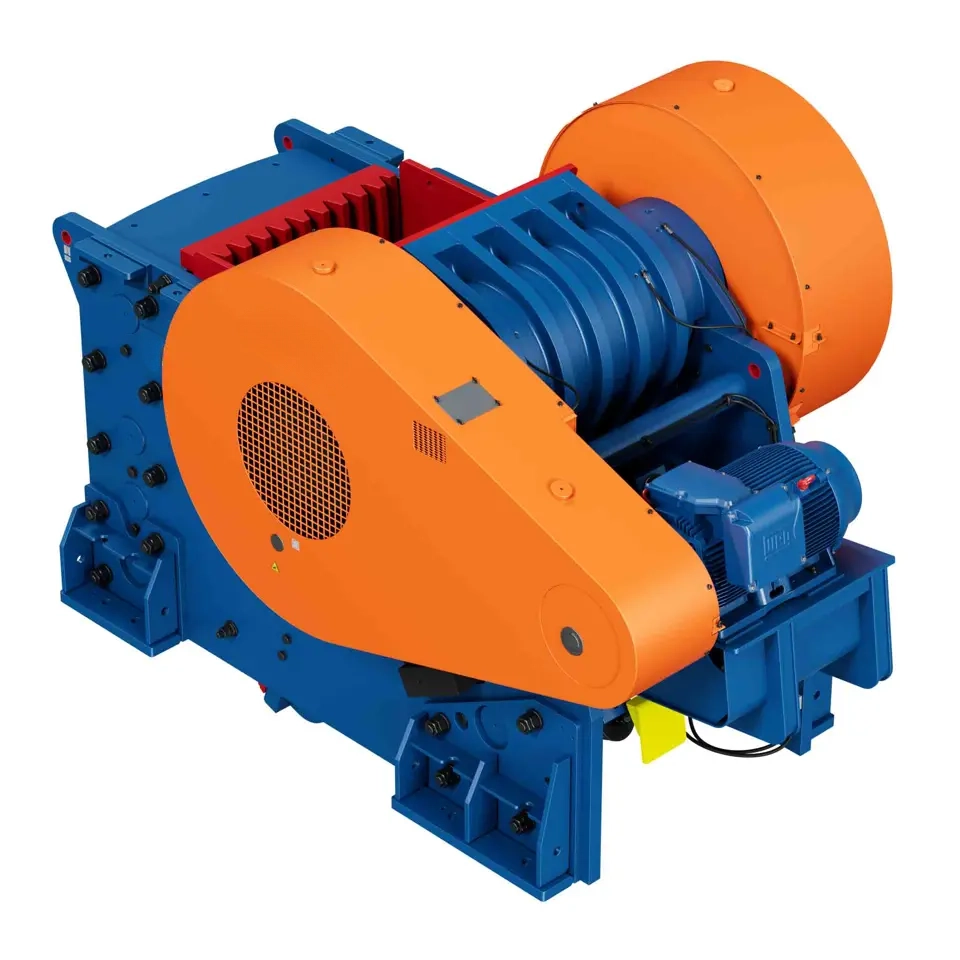

EM Series Jaw Crusher

The EM Series Jaw Crusher is engineered to perform in the toughest environments, delivering efficient crushing of large rocks at high production rates.

Widely used in mining for processing precious metals and a wide range of minerals, it also handles hard abrasive rock, limestone, concrete, asphalt, and slag in aggregates and recycling.

Built to last, it features:

• Large, spherical, self-aligning roller bearings

• High-strength, low-carbon alloy steel frames

• Extra-large, drop-forged, heat-treated eccentric shafts

• Wrap-around wear parts for extended service life

Materials: Low carbon steel, heavy-duty cast steel, ductile iron, chrome-nickel steel, AR steel

Liner Options: Wear liners

Weight: 13,000 – 152,000 kg

Feed Opening: 250 × 760 mm to 1500 × 2000 mm

Max Feed Size: 405 mm (16”) to 1200 mm (47”)

Production Rate: 20 – 1450 mtph

Installed Power: 30 kW (40 HP) to 400 kW (550 HP)
