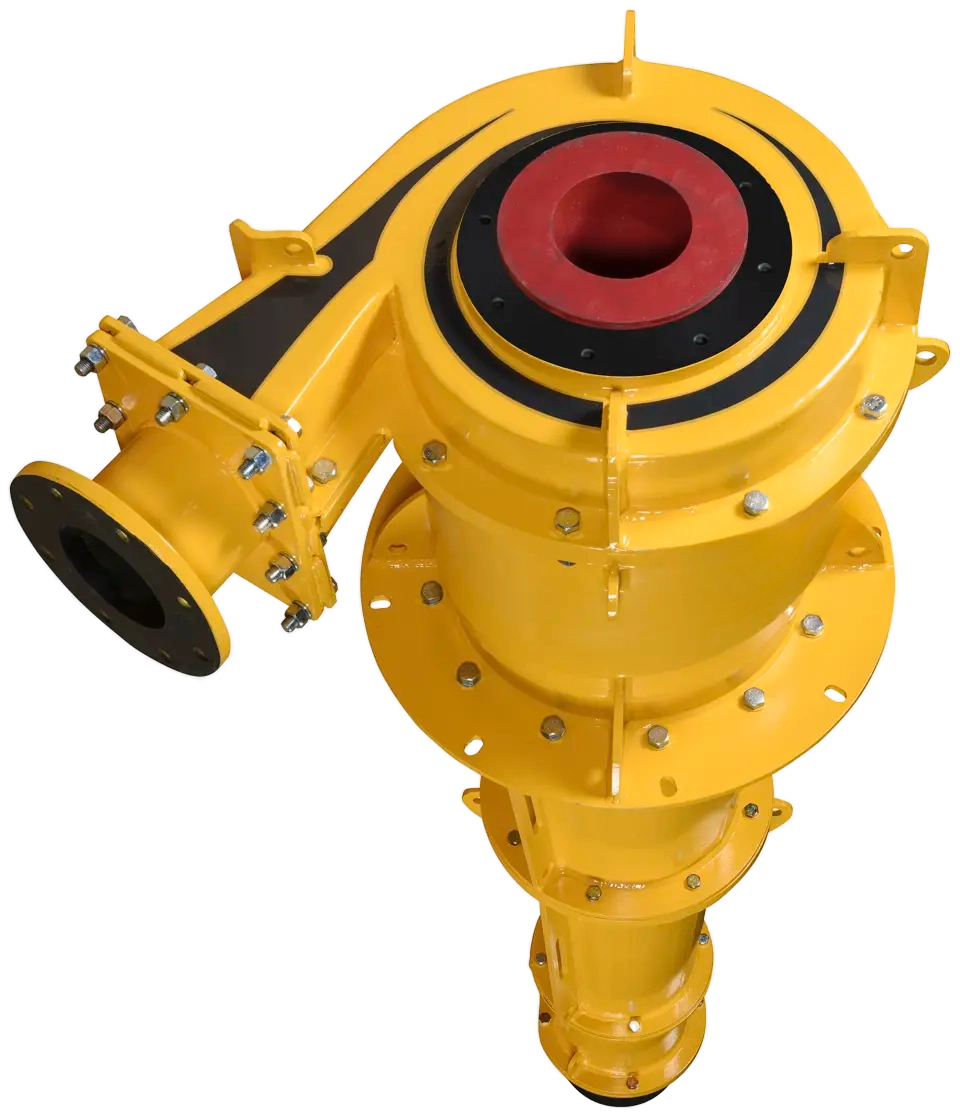

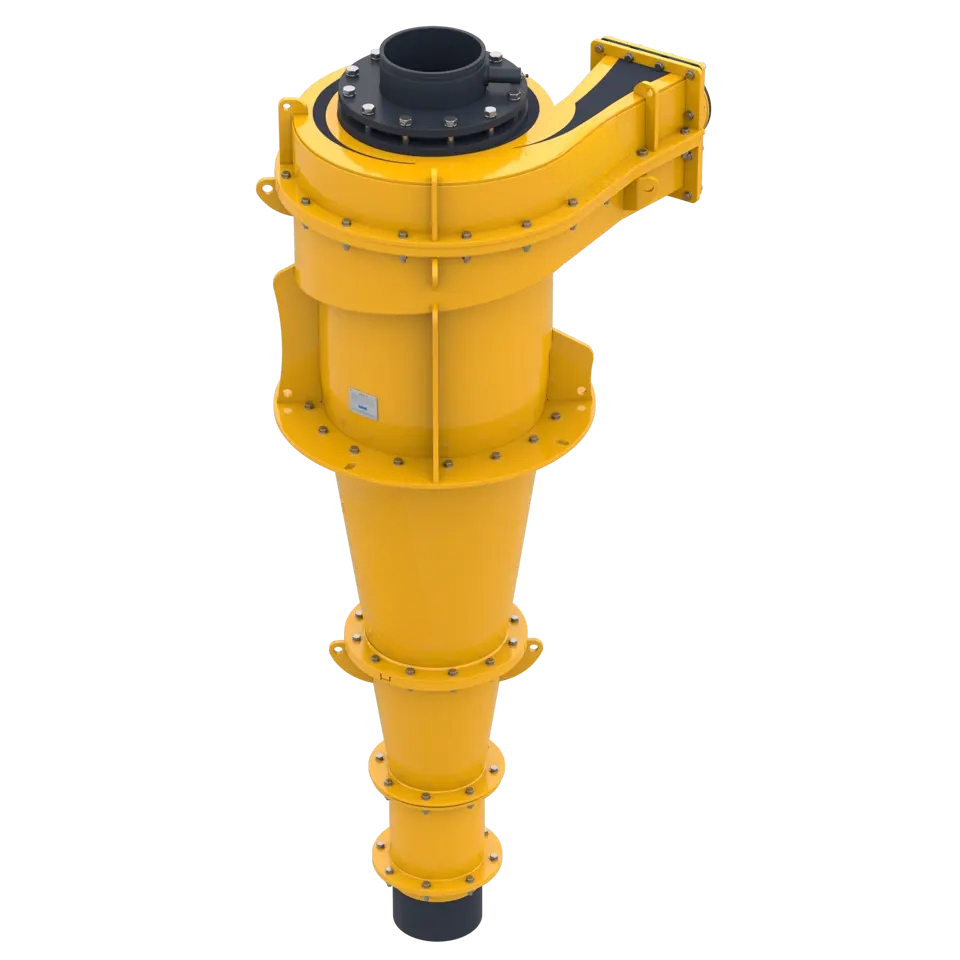

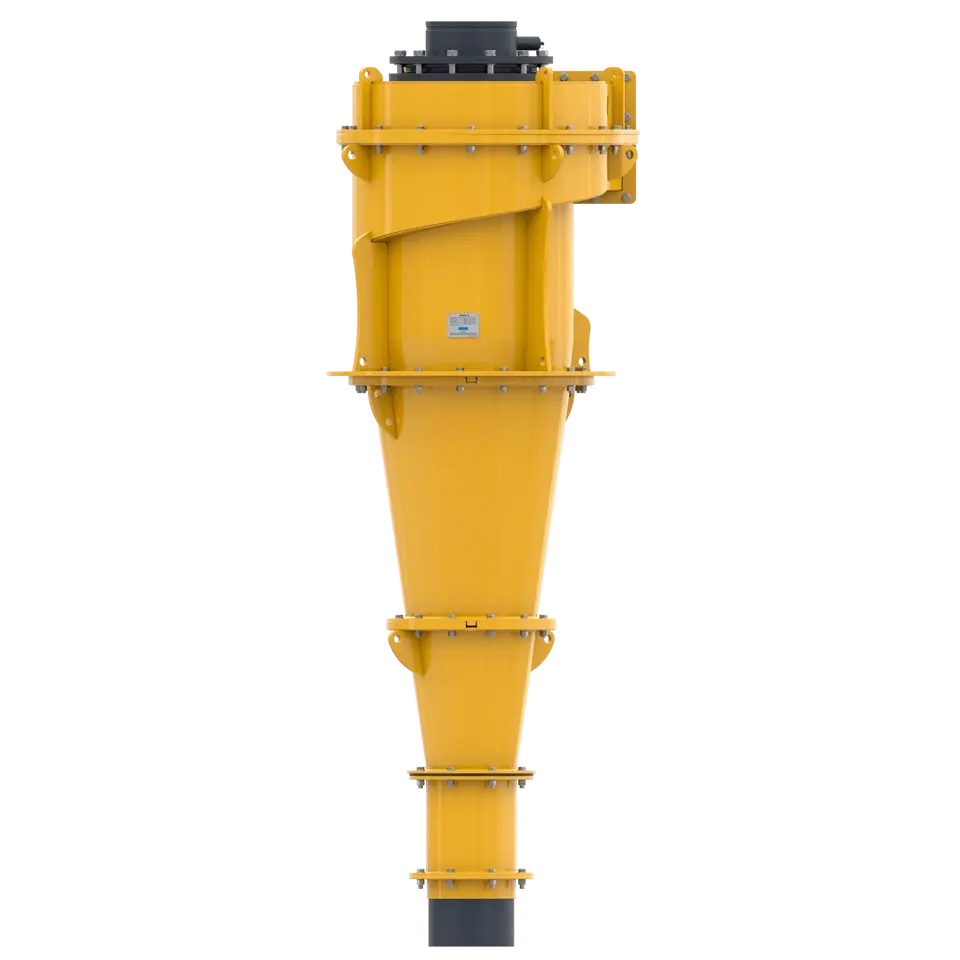

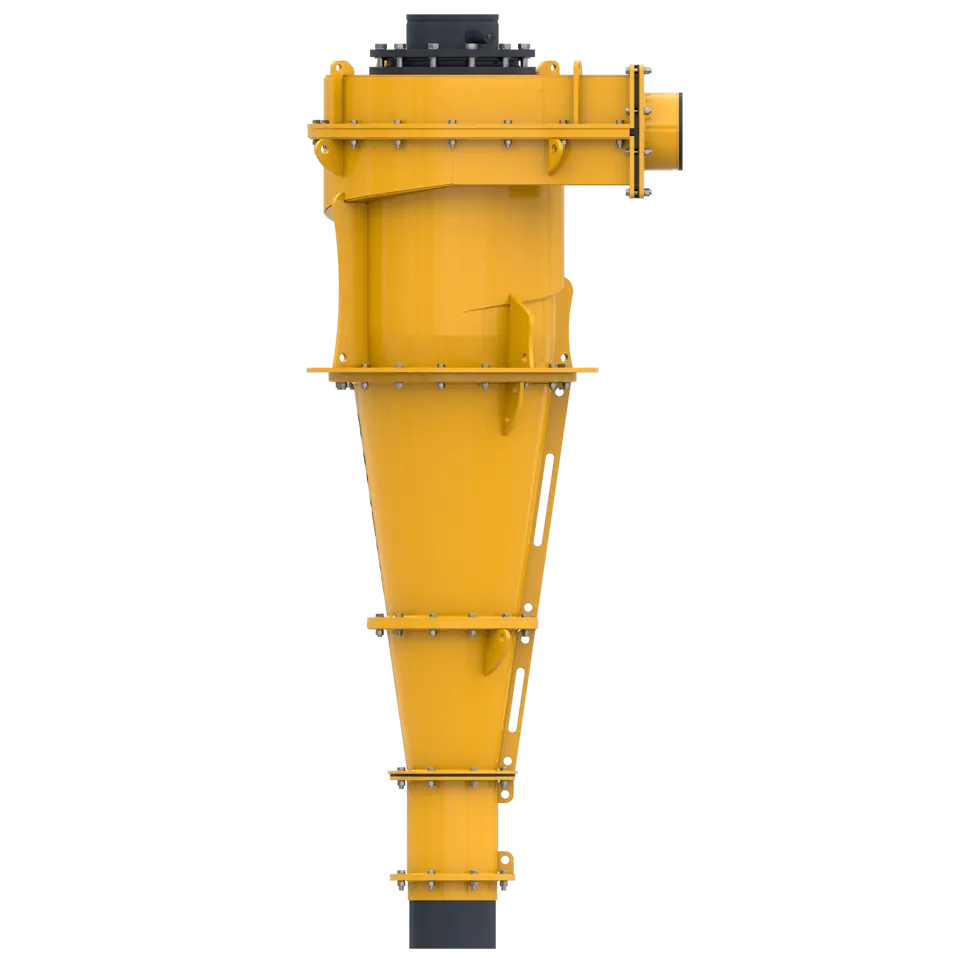

HX Series High-Efficiency Hydrocyclones

The HX Series hydrocyclones are Minerza’s next-generation classification solution, developed to set a new industry benchmark in separation performance, volumetric capacity, and wear life.

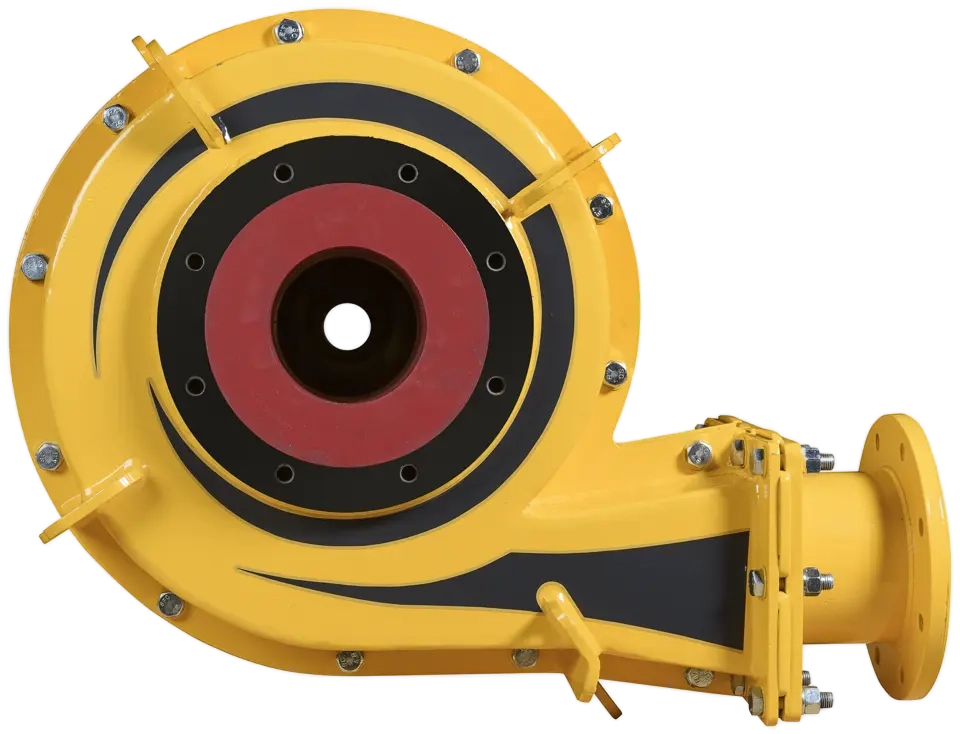

Engineered with our proprietary spiral inlet geometry, the HX Series stabilizes internal flow, reduces turbulence, and delivers exceptional separation efficiency — especially in the critical 8–500 micron range. This design enables up to 30% more throughput without increasing equipment footprint, while also reducing misclassification and enhancing fines recovery. Combined with energy-efficient operation and low maintenance, HX Series hydrocyclones provide sustainable performance for grinding circuits, cyclone clusters, and tailings systems.

Materials

Rubber-lined or ceramic-lined metal housing; available in DMC composite

Size Range

40 mm – 800 mm diameter

Operating Pressure

0 – 250 kPa

Temperature Range

0 – 80 °C

Capacity Increase

Up to 30% higher throughput compared to conventional designs

Efficiency Benefits

Reduced misclassification by ~10%; improved fines bypass by ~15%

Maintenance

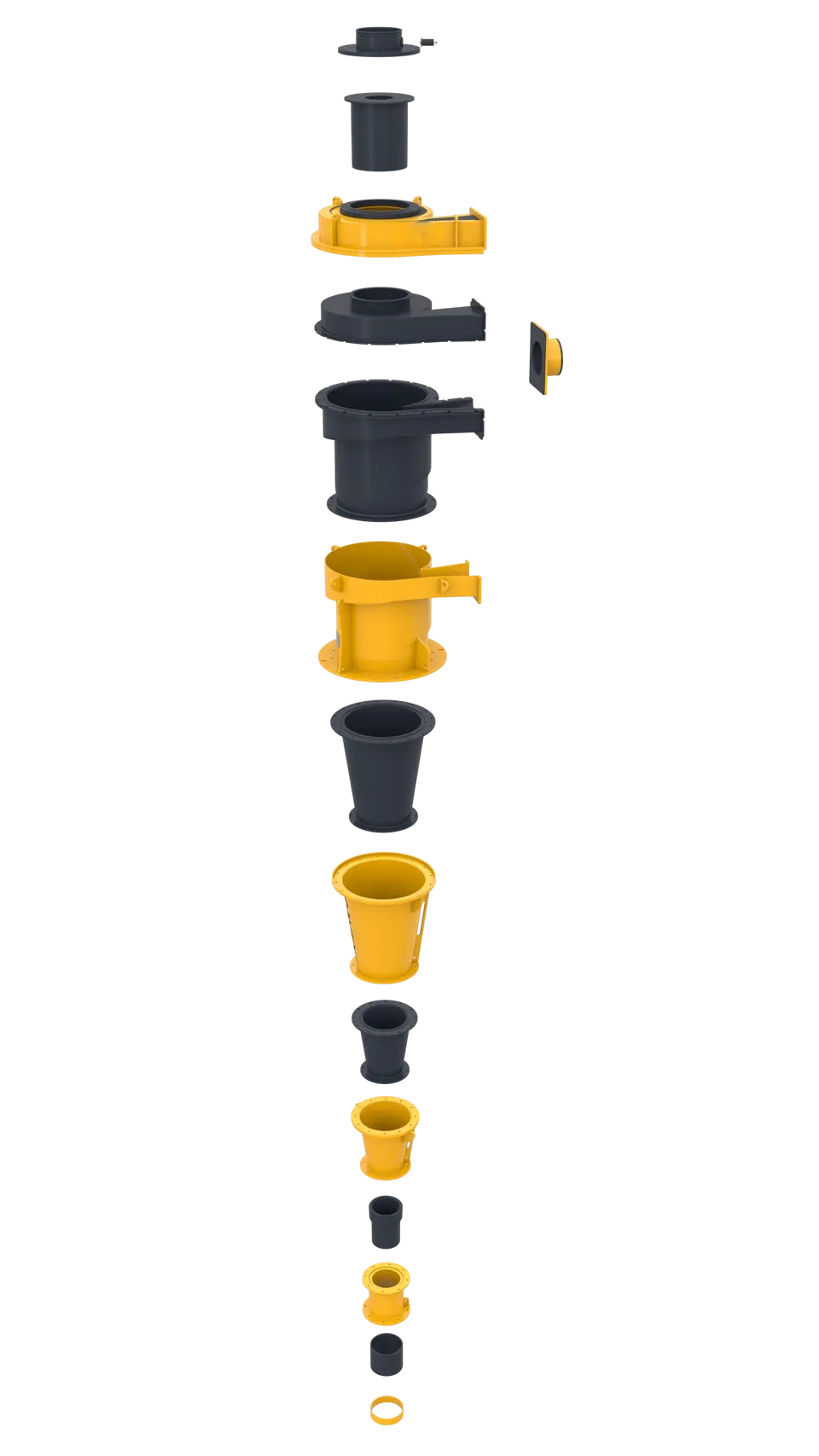

Snap-in liners for fast, glue-free replacement and safer handling

Installation

Retrofit-ready for Cavex and third-party cyclone systems
