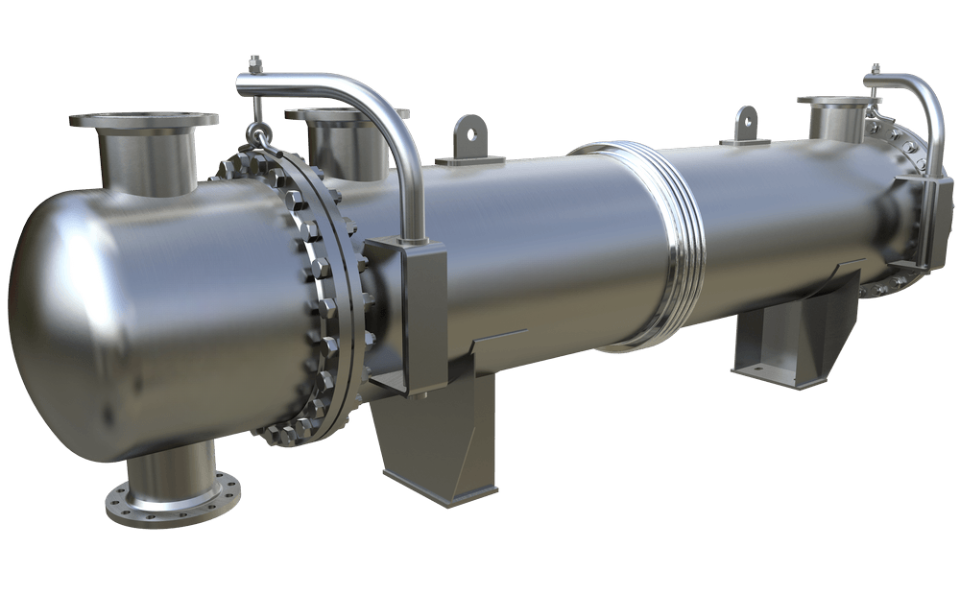

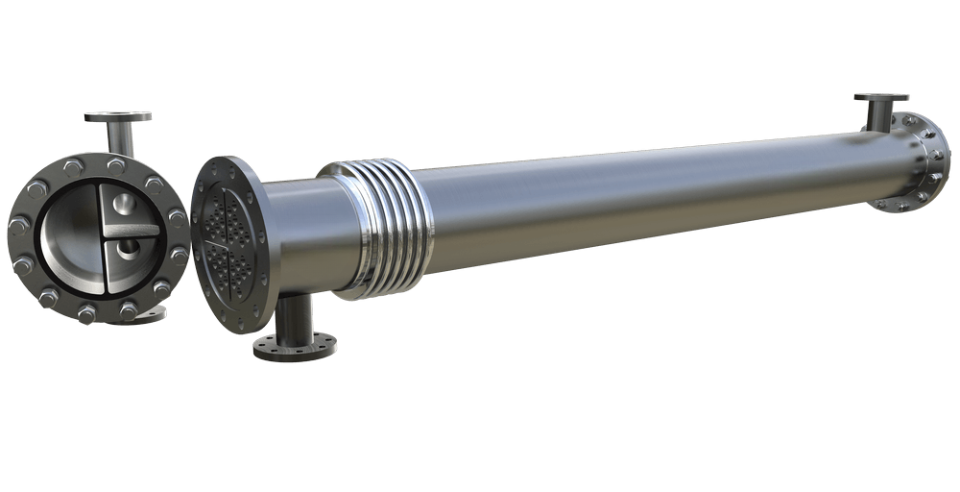

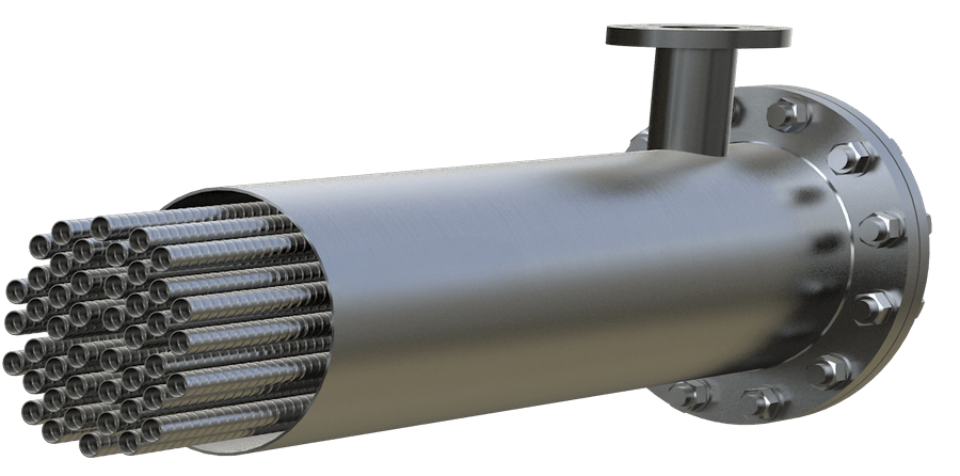

IMP Series – Industrial Multiple-Pass Shell & Tube Heat Exchanger

IMP Series heat exchangers are designed for industrial process applications requiring compact layout, high thermal efficiency, and multi-pass configurations. The tube side features 2 to 8 passes, increasing fluid velocity and turbulence for optimal heat transfer, especially in cases with limited temperature differences. Built according to TEMA, ASME, and PED standards, the IMP Series is suited for steam, water, thermal oil, and a variety of chemical or utility fluids. The design includes fixed or removable bundles, straight or U-tube options, and full customization of baffles, support plates, materials, and nozzle orientation.

Specifications:

Design: Multi-pass shell & tube

Tube passes: 2 to 8 (custom)

Standards: TEMA / ASME VIII Div 1 / PED

Materials: Carbon steel, AISI 304/316, duplex, alloy

Operating pressure: Up to 100 bar

Temperature range: −40 °C to +400 °C

Application: Water, steam, thermal oil, chemicals

Configuration: Fixed, U-tube, or floating head

Options: Expansion joints, insulation, baffle design

Mounting: Horizontal or vertical
